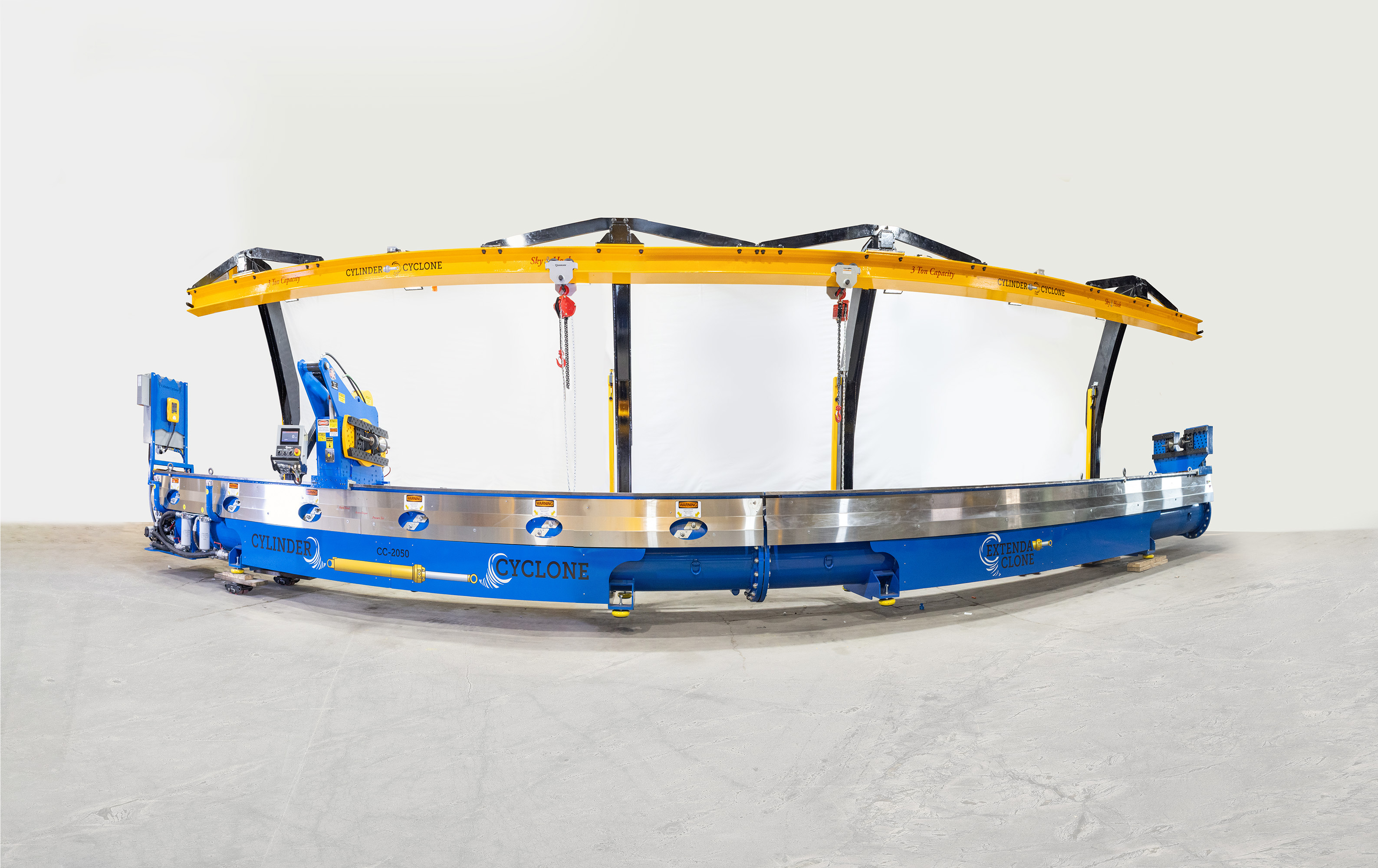

    Cylinder Cyclone

    With 12' ExtendaClone added. Services cylinders up to 20' long!

  • Image:

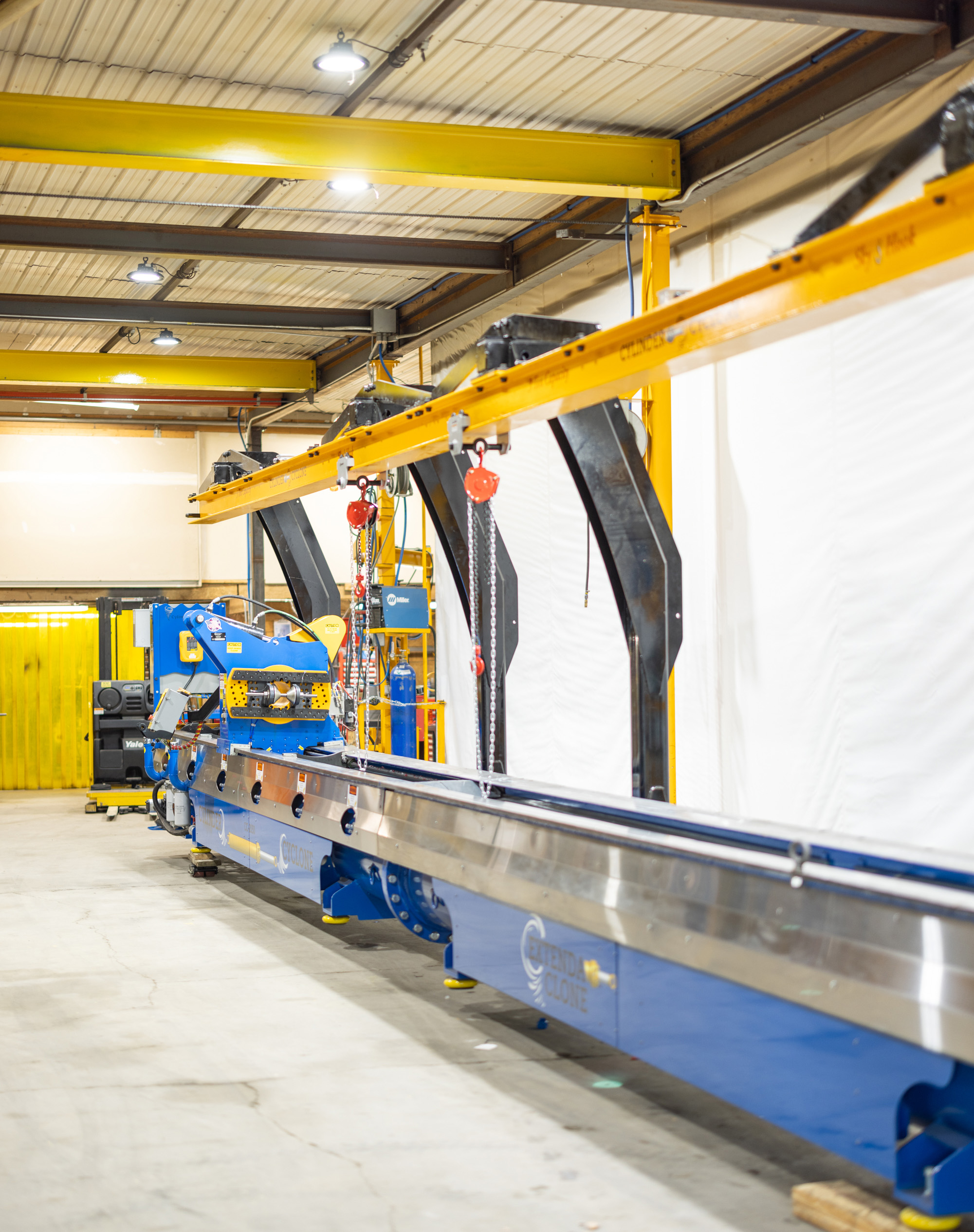

    Cylinder Cyclones finished, ready to serve in cylinder repair shops

  • Image:

    NEW! Touchscreen control -- Safety and precision all in one!

  • Image:

    Cylinder Cyclone and Tool Caddy with custom designed tooling, Your answer to hydraulic cylinder repair

  • Image:

    Troubles repairing

    Heavy duty cylinders? Here's your answer!

Cylinder Cyclone

Does your shop manufacture or repair hydraulic cylinders?
Take a close look at the Cylinder Cyclone and what it can offer you! We offer revolutionary solutions for the professional hydraulic cylinder manufacturing and repair industry.

  • Bi-directional Torque Capability

    Tighten with a torque of up to 37,500 ft./lbs. or loosen with up to 50,000 ft./lbs. (model CC-2050-CPB), or with 50,000 ft./lbs. of tightening torque and 60,000 ft./lbs. of loosening torque (model CC-2060-RPB)... simply at the push of a remote button!

  • Large Capacities

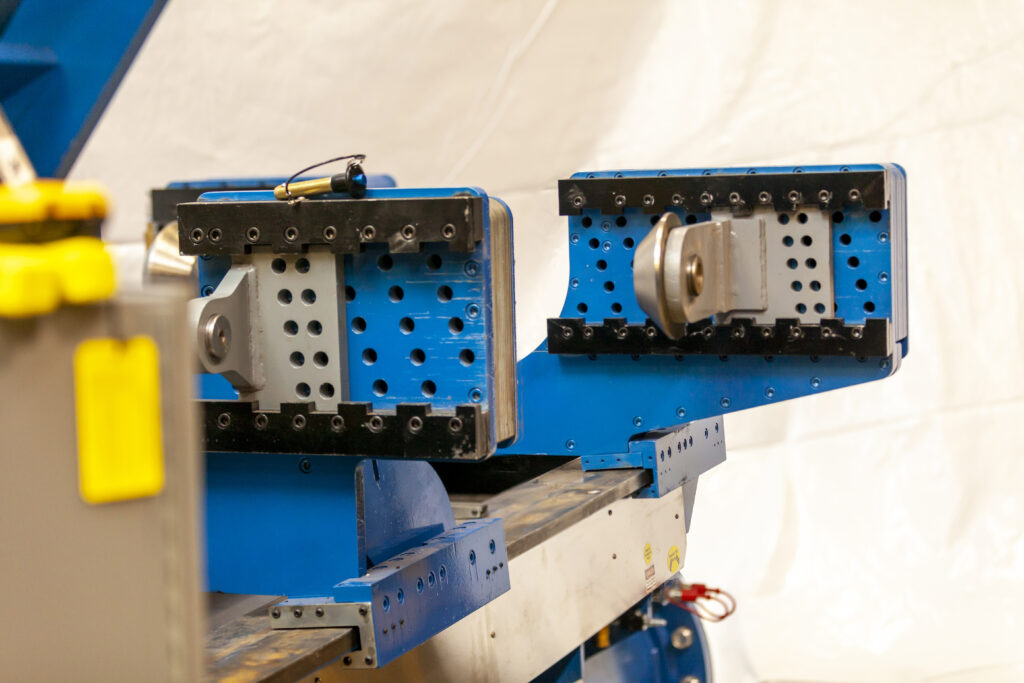

    The standard bench services cylinders up to 18” bore and 10’ long stroke. If all other cylinder components are removed from the bench, it is capable of removing a nut from a 20’ long rod. Add the optional ExtendaClone feature for an additional 6’ or 12’ of length capacities. Use the standard tailstock for up to 8” diameter rods, or the oversized tailstock for up to 15” diameter rods.

  • Free-standing unit

    The entire unit is self-contained. It can be placed where it best serves your needs and moved whenever needed.

  • Electronic Control

    Most of the machine functions are electronically-controlled via a wireless remote for safe and precise accuracy. A touch screen is used for machine-monitoring and parameters.

  • Full Length Push/Pull Feature

    Perform repairs and tests on cylinders smoothly and quickly. With full length non-stop travel, there is no need to reset anchor points or move components.

  • Sky Hook - Gentle Control

    Suspending the cylinder from the machine via the Sky Hook guarantees accurate cylinder alignment and smooth, easy handling.

  • Multi-speed Torque Head Travel and Rotation with Adjustable Pressure

    Choose the force and speed you need. Avoid thread damage.

  • Precision Torque Settings

    Tighten all repaired cylinder settings to manufacturer’s specs with a digital display on touchscreen - no guesswork!

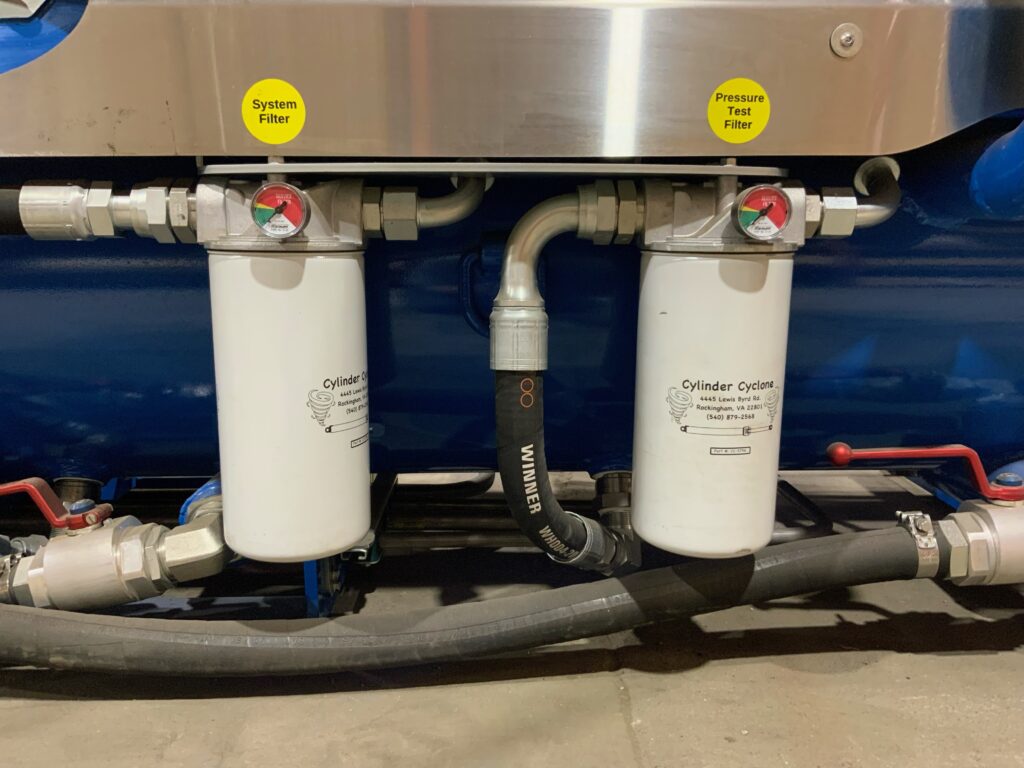

  • On-machine Pressure Testing

    Test your repaired cylinders without any additional equipment. Guarantee your repairs with standard pressure test graphing capabilities and an optional printing capability that enables you to send a report with your work.

  • Simple, Safe Operation

    No need to be exposed to dangerous situations. Wireless remote allows operator to stand clear of machine functions. Simple operator training achieves professional results.

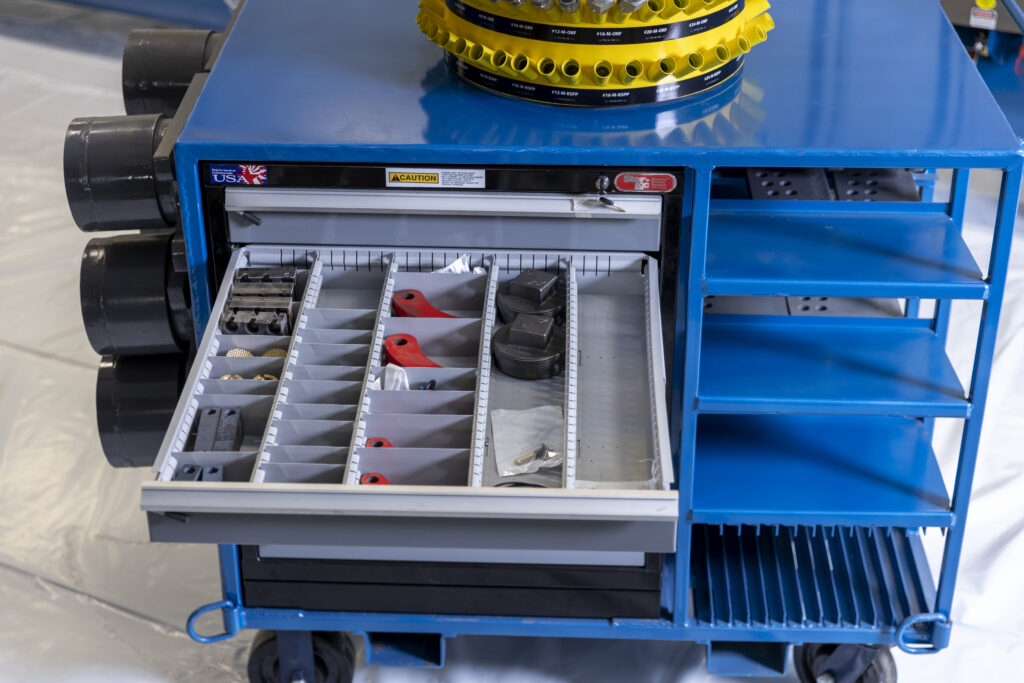

Tool Caddy and Specialized Tooling

View the Benefits and features

Disassembling a Hydraulic Cylinder

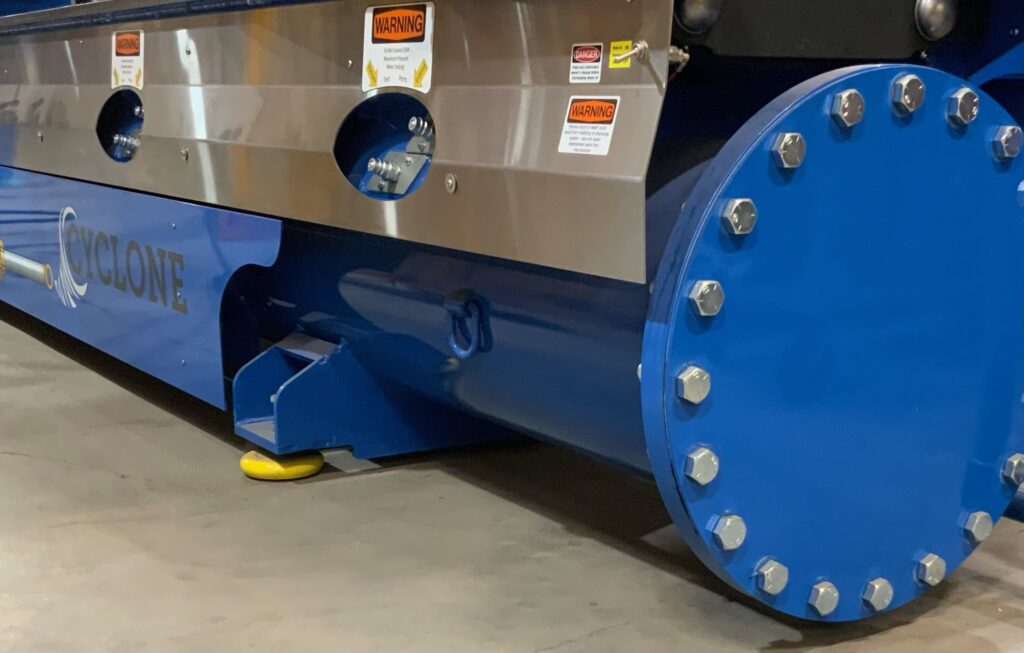

Does your shop repair large hydraulic cylinders? Are you looking for a machine with the power and precision to handle the job safely and efficiently, a machine capable of disassembling fasteners and retorquing them to manufacturer’s specs without damaging nuts or threads in the process? Consider the Cylinder Cyclone. Innovation from the ground up, from the large pipe on which the machine is built to the Sky Hook crane overhead, the Cylinder Cyclone is a complete stand-alone unit that can be set anywhere and moved at anytime. Also, with the built-in pressure testing system, there is no need for additional devices to test your rebuilt cylinder. Take a look; we think you’ll see why it is an excellent choice for your cylinder repair needs.

The Cylinder Cyclone is offered with a complete set of custom-designed tooling which streamlines every phase of cylinder repair and testing. Consider purchasing the custom-built and stocked Tool Caddy for the most efficient setup.

We now offer the CC-2050-RPB model with 50,000 ft./lbs. loosening and 37,500 ft./lbs. tightening capabilities, and the CC-2060-RPB model with 60,000 ft./lbs. loosening and 50,000 ft./lbs. tightening capabilities.

Engineered and built by hydraulic specialists with machine shop precision and top-of-the-line components. Contact us with any questions you may have about the Cylinder Cyclone.

Machine Specifications

Dimensions — 27' long, 54" wide, and 10'6" high (with Sky Hook) (can be extended 12' or 24' longer according to your needs at a relatively inexpensive cost.)
Operating specifications — 24" swing and 20' center to center working length. Standard Cylinder Cyclone handles cylinders 24" diameter swing by 10' long. Simple attachment available for shops that work with longer cylinders.
Weight (including system fluids) - approximately 8,000 lbs
Oil Capacities:
Cylinder Cyclone System — 30 gal.
Pressure test system — 55 gal
Waste oil from cylinders — 250 gal

Motor — 15HP 208/230/460V 3 phase motor or single phase 230V

Click here to see pricing


In developing the Cylinder Cyclone we have also developed specialized tooling to serve the hydraulic industry. We have grouped this tooling into packages to meet the needs of different shops. Ordering tooling in a package offers significant discounts.

Click here to explore package options

**Note to international customers - Due to international regulations and logistic challenges, we request that customers outside of the US and Canada come to our Virginia location (given below) if interested in purchasing a Cylinder Cyclone.

**Also please note - This website does not sell cylinders. We do repair cylinders at our Virginia location, but our specialty is in providing a hydraulic cylinder repair bench for the cylinder repair industry.
